Arch Survey Command

The arch survey tool is used to collect information about your architectural design. The tool does not add elements to your drawing/model. It is used to collect and output data.

The Process

  1. Start the Survey Operation
  2. To add a “Header” start by clicking within the description box. This will add a line, with no measurements

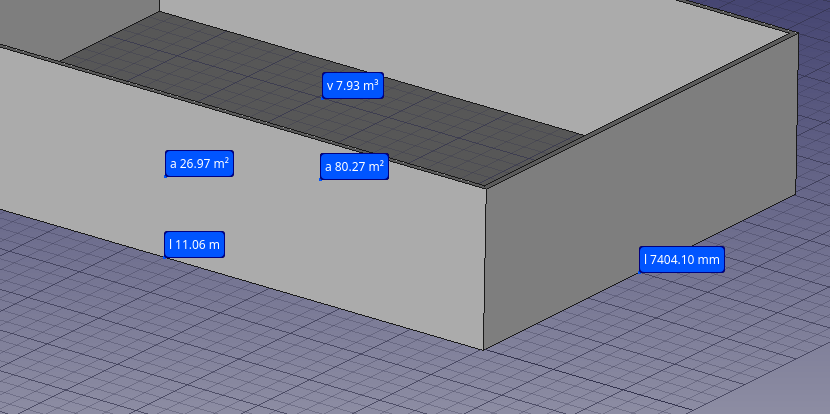

  3. Click the Element to Record. Face or Edge.
  4. Add the description for the measurement you just added
  5. Double click the structure to get area

As of this writing the Clear function does not seem to operate.
