Part Design – Subtractive Groove ( Revolution )

The Subtractive Groove uses a Sketch to remove material from a Body. The selected sketch is rotated around an axis and removes material that it intersects. To complete a successful groove it must intersect some parts of the Body in which it is contained.

If you prefer to watch a video:

Creating a Groove

To create the groove we will re-create the Icon shown in the toolbar. Sans, the colors and the red line in the middle.

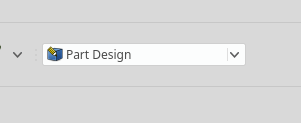

Create a New Document, Select Part Design and add Body

Select an additive cylinder

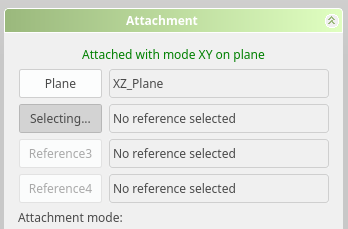

Pick the XZ-Plane as its attachment

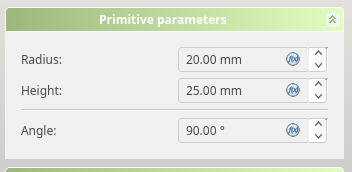

  1. Set the Cylinder radius to 10.00 mm
  2. Set the Height to 25.00
  3. Set the Angle to 90 Degrees

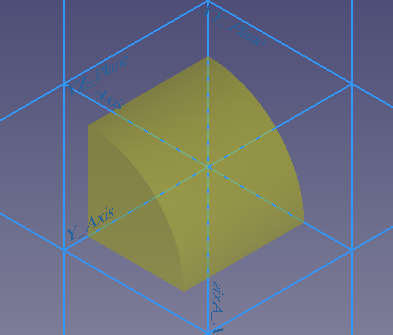

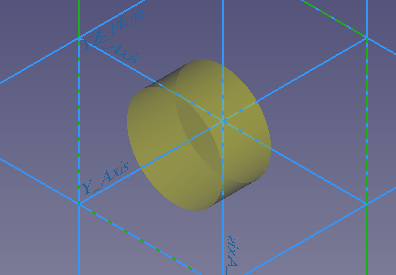

Click OK to accept the cylinder.

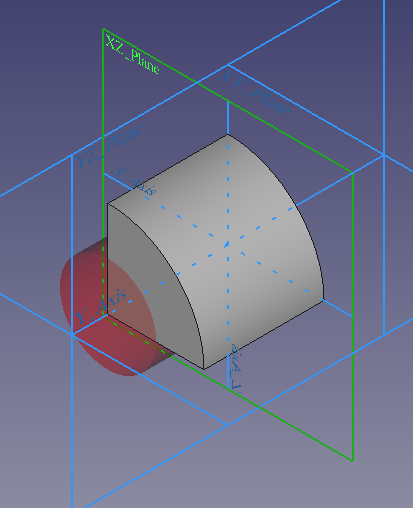

  1. Subtract the middle with a subtractive cylinder
  2. Select the subtractive cylinder

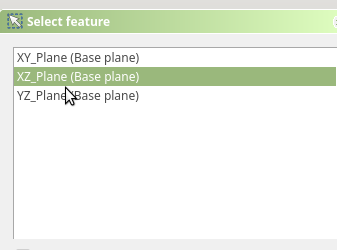

  3. Pick the XZ-Plane as its attachment

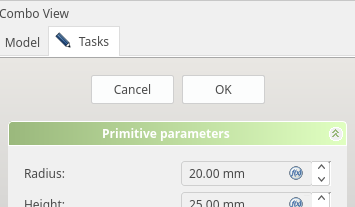

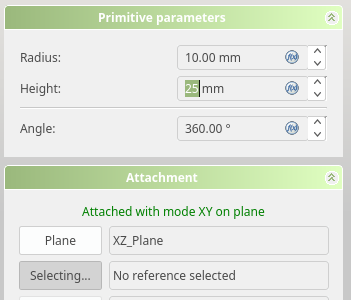

  4. Set cylinder radius to 10.00 mm
  5. Set the height to 25 mm

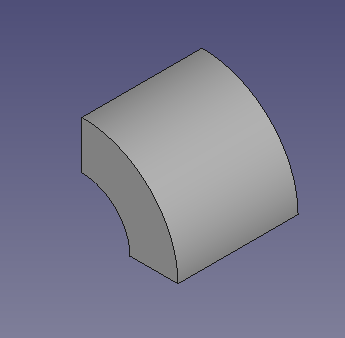

Our basic body is complete:

Add a sketch

Attach to XY-Plane

Add a Circle

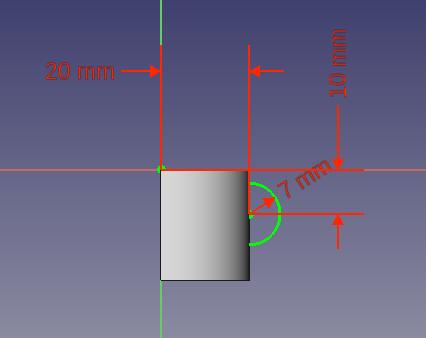

Constrain the circle radius to 7 mm

Use a Horizontal contraint from the Circle center to the Sketch Origin, set te distance to 20

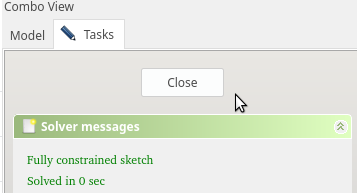

Use a Horizontal contraint from the Circle center to the Sketch Origin, set te distance to 10

Add the Groove

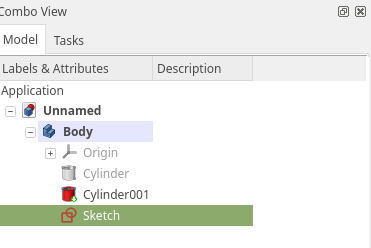

Select the Sketch in the Model Tree and Select the Create a Groove tool

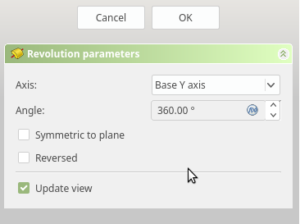

Select the base Y-Axis as the revolution axis.

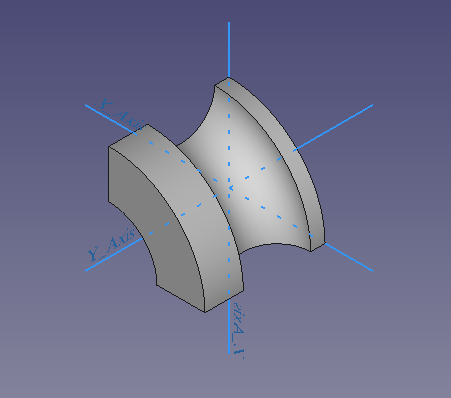

The Groove will be added and you can click OK to accept your choice
