Sketcher Tools

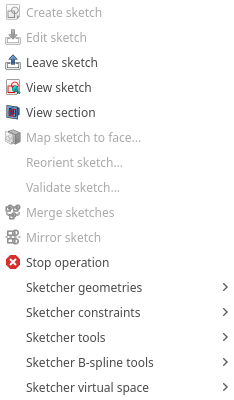

When the Sketcher Workbench is activet you will be able to select the sketcher tools from the “Sketch” menu item.

The tools in Sketcher tools

  • Select solver DoFs
  • Close Shape
  • Connect Edges
  • Select Constraints
  • Select Origin
  • Select Vertical Axis
  • Select Horizontal Axis
  • Select Redundat Constraints
  • Select Conflicting Constraints
  • Select Elements associated with constraints
  • Show/hide internal geometry
  • Symmetry
  • Clone
  • Copy
  • Move
  • Rectangular Array
  • Delete All Geometry
  • Delete All Constraints
